Centrifugal pumps

Self­-prim­ing cen­trifu­gal pum­p S

Sub­mersible pump Serie UNIQA

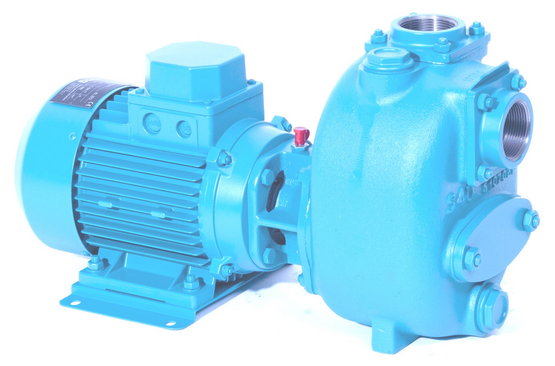

Self-priming centrifugal pump S

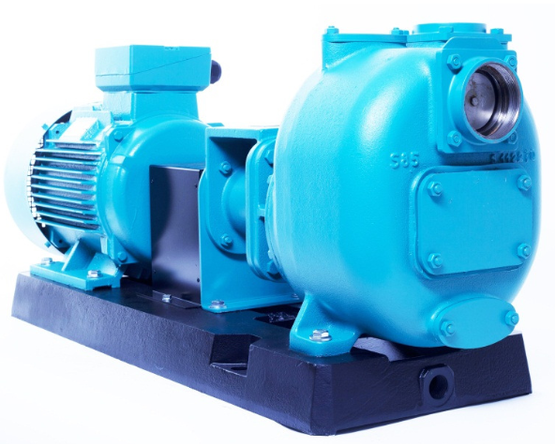

Selbstansaugende Kreiselpumpe S aus Edelstahl, Grauguss oder Bronze
Selbstansaugende Kreiselpumpe S aus Edelstahl, Grauguss oder Bronze
Information Manual

Application:

The self-priming centrifugal pump S can be used to pump fluids with solids up to 80 mm. This pump series is able to pump abrasive fluids and fluids containing air due to the special construction.


Characteristics:
  • Self-priming
  • Free passage 15 – 80 mm
  • Heavy duty
  • Suitable for abrasive fluids
  • ATEX optional

Ma­te­ri­als:
The pump can be pro­duced in cast iron, stain­less steel or bronze. Also a com­bi­na­tion of dif­fer­ent ma­te­ri­als is pos­si­ble.


Tech­ni­cal data:

  • Q max.: 600 m³/h
  • H max.: 55 m
  • max. nom­i­nal pres­sure: PN16 (16 bar)
  • Con­nec­tions: DN40 to DN200

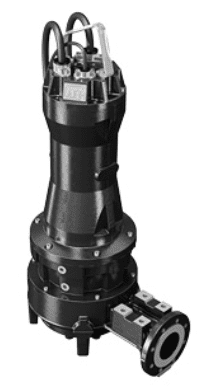

Submersible pump UNIQA

Tauchmotorpumpen Serie UNIQA
Information Manual

Ap­pli­ca­tion:

UNIQA se­ries pumps, de­signed for heavy-duty pro­fes­sional ap­pli­ca­tions, are used in
in­dus­trial and other waste­water treat­ment plants and for lift­ing sewage and pump­ing waste­water which con­tains solids.

De­pend­ing on the re­quire­ments, each model com­prises a mo­tor-hy­draulics com­bi­na­tion cho­sen to pro­vide op­ti­mal per­for­mance at the duty point, low en­ergy  use, and high re­li­a­bil­ity, thanks to the use of the ma­te­ri­als best suited to the type of ap­pli­ca­tion.

The en­tire range is avail­able in the DRY  ver­sion, which re­quires no ex­ter­nal liq­uid in­puts and al­lows the elec­tric pump to op­er­ate con­tin­u­ally even if par­tially sub­merged or in­stalled in a dry cham­ber.


Characteristics:

  • vor­tex im­peller (ZUG V) with full free pas­sage
  • chan­nel im­peller (ZUG OC) with anti-clog­ging and anti-foul­ing sys­tem
  • high head im­peller (ZUG HP) ca­pa­ble of high hy­draulic per­for­mances
  • im­peller with grind­ing sys­tem (ZUG GR) for use with soiled liq­uids and fil­a­ments
  • im­peller with Chop­per sis­tem (ZUG CP) able to cut par­ti­cles of any shape of pro­por­tion
  • ATEX pos­si­ble
  • 1,8 to 355 kW motor IE3

Materials:

The pump can be produced in cast iron, stainless
steel or bronze. Also a combination of different materials is possible.


Tech­ni­cal data:

  • Q max.: 5760 m³/h
  • H max.: 100 m
  • Immersion depth: max. 20 m
  • Temperature fluid: max. 60°C (auf An­fra­ge bis 80°C)
  • Connections: DN50 – DN600

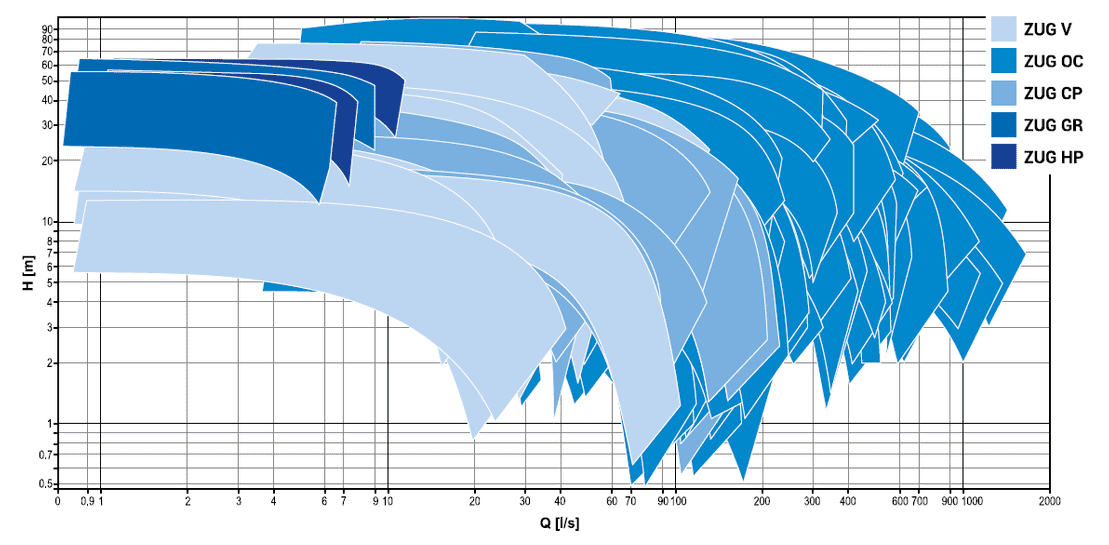

Gesamtübersicht Arbeitsbereich

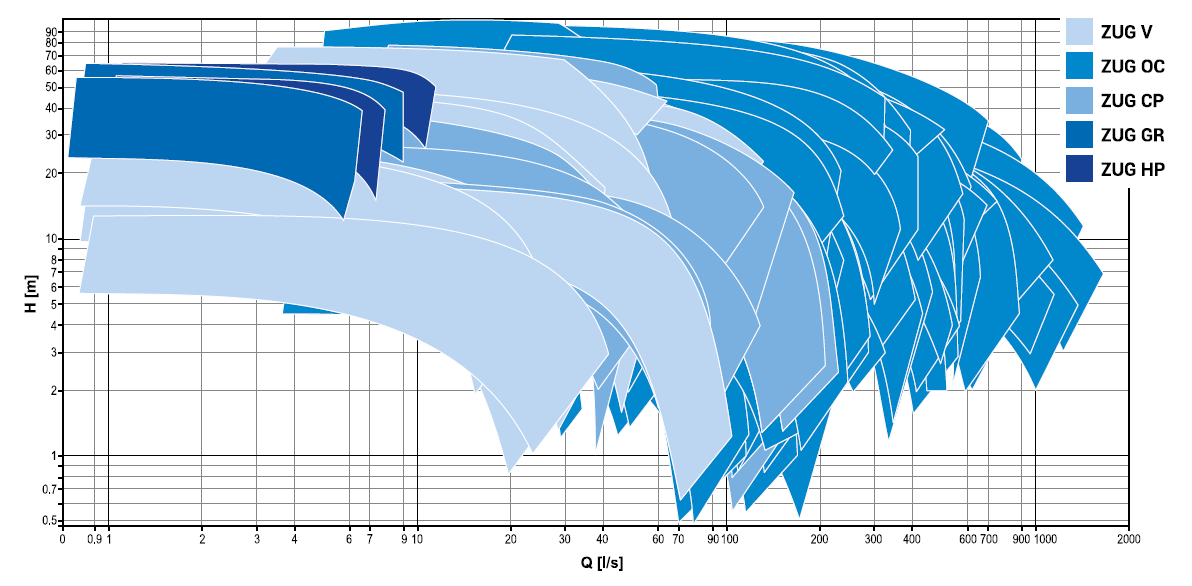

Gesamtübersicht Arbeitsbereich Pumpe
