Submerged pumps

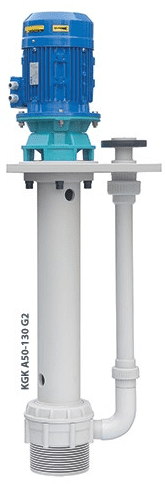

Immersible Pump KGK

Eintauchpumpe KGK

Application:

The immersible pump KGK is used for pumping clear liquids (mostly chemicals) without abrasive, solid or fibrously contents.


Characteristics:

  • Ideal for corrosive liquids with a density up to 1,8 (1.800 kg/m³)
  • Immersion depth up to 4000 mm

Ma­te­ria­ls:

The im­mersible pumps KGK are pro­duced eather from PP or PVDF.


Tech­ni­cal Data:

  • Q max.: 220 m3/h
  • H max.: 84 m
  • Tem­pe­ra­ture liquid: -10 to 90°C (de­pend­ing on ma­te­r­ial)
  • Connections: DN25 to DN100

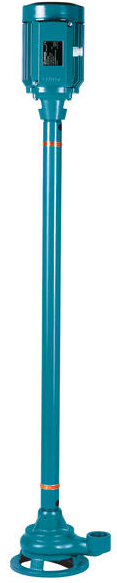

Immersible Pump VAL, SC

Eintauchpumpe VAL,SC Information User manual

Application:

The immersible pump VAL and SC are used for pumping clear or slightly polluted liquids without abrasive, solid or fibrously contents.


Characteristics:

  • VAL with vortex type impeller (ball passage 25 to50 mm)
  • SC with open impeller (ball passage 3 to 6 mm)
  • Sealless (no mechanical seal needed)
  • Immersion depth VAL 750 – 2450 mm
  • Immersion depth SC 455 – 1220 mm


Ma­te­ri­als:

 The im­mersible pump VAL and SC are pro­duced from grey iron and brass (im­peller).


Tech­ni­cal Data:

  • Q: 3 – 30 m³/h
  • H: 2 - 11 m
  • Max. nom­i­nal pres­sure: 2,5 bar
  • Tem­per­a­ture liq­uid: max. 40°C
  • shaft seal: seal­less
