Self-priming pumps

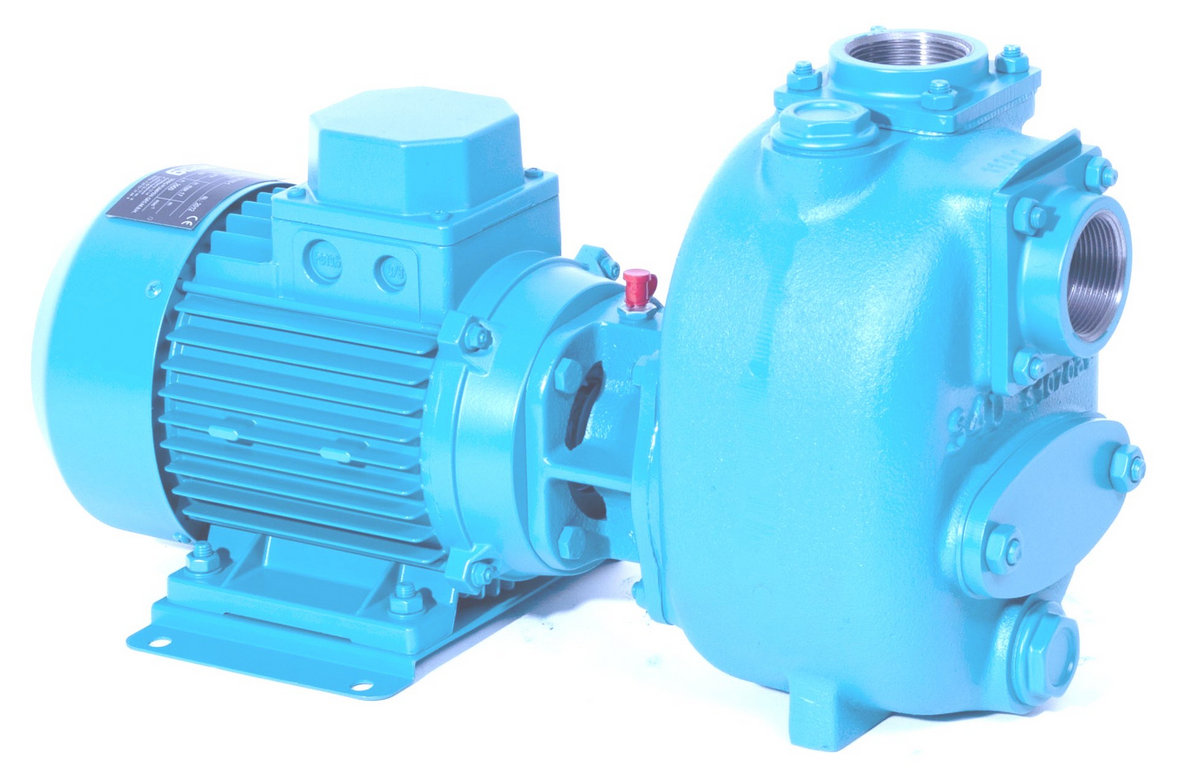

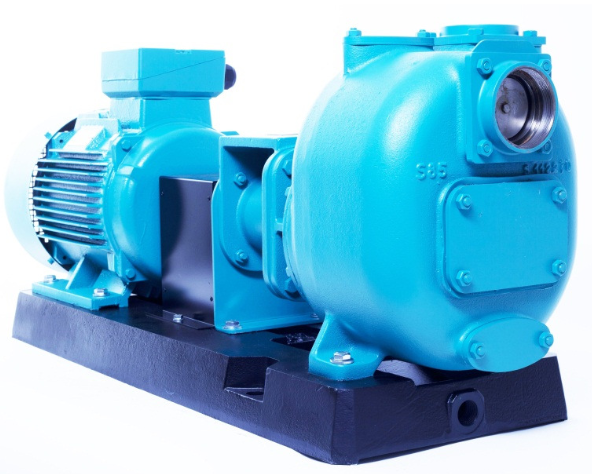

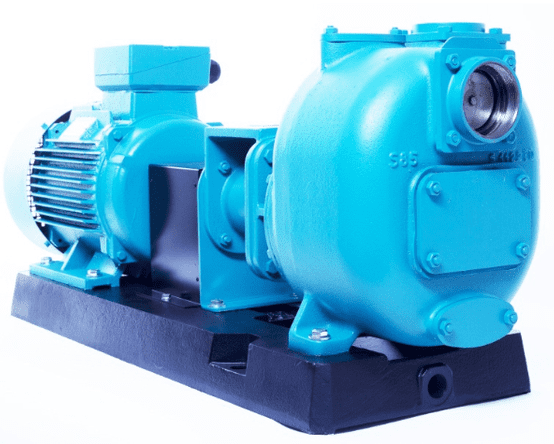

Self-priming centrifugal Pump S


The self-priming centrifugal pump S can be used to pump fluids with solids up to 80 mm. This pump series is able to pump abrasive fluids and fluids containing air due to the special construction.


  • Self-priming
  • Free passage 15 - 80 mm
  • Heavy duty
  • Suitable for abrasive fluids
  • ATEX optional


The pump can be produced in cast iron, stainless steel or bronze. Also a combination of different materials is possible.

Tech­ni­cal data:

  • Q max.: 600 m³/h
  • H max.: 55 m
  • Ma­x. nominal pressure: PN16 (16 bar)
  • Connections: DN40 - DN200
