Submersible pumps

Sub­mersible Pump Grey

Sub­mersible Pump UNIQA

Sub­mersible Pump GXC, GXV

Sub­mersible Pump GMC, GMV

Sub­mersible Pump GM

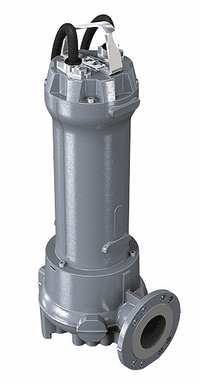

Application:

The Grey series features completely redesigned hydraulics and motors, to guarantee high performance, low consumption and outstanding versatility.
This means clearer choices for end users selecting their products, and more efficient industrialization. And greater efficiency means better reliability and lower costs, all benefiting customers.

Characteristics:

• DGG with vortex impeller
• DRG with channel impeller
• GRG with open multi-channel impeller and grinding system
• APG open multi-channel impeller fpór high head
• An­ti-Clog­ging Sys­tem DRG and GRG
• All pumps with double mechanical seal in a large inspectable oil chamber
• ATEX possible

Materials:

They Grey series is made of cast iron

Technical Data:

• Q max.: 730 m³/h
• H max.: 52 m
• Immersion depth: max. 20 m
• Tem­pe­ra­ture fluid: max. 40°C

Application:

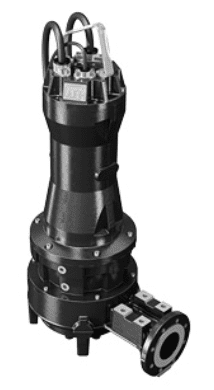

UNIQA
series pumps, designed for heavy-duty professional applications, are used in industrial and other wastewater treatment plants and for lifting sewage and pumping wastewater which contains solids.
Depending on the requirements, each model comprises a motor-hydraulics
combination chosen to provide optimal
performance at the duty point, low energy use, and high reliability, thanks to the use of the materials best suited to the type of application.
The entire range is available in the DRY
version, which requires no external liquid inputs and allows the electric pump to operate continually even if partially submerged or installed in a dry chamber.

Characteristics:

• Vortex impeller (ZUG V) with full free passage
• channel impeller (ZUG OC) with anti-clogging and anti-fouling system
• high head impeller (ZUG HP) capable of high hydraulic perfomances
• impeller with grinding system (ZUG GR) for use with soiled liquids and fialments
• impeller with chopper system (ZUG CP) able to cut particles of any shape of proportion
• ATEX possible
• 1,8 to 355 kW motor IE3

Materials:

The pump can be produced in cast iron or
stainless steel. The impeller can be made of stainless steel, duplex, bronze, cast iron, aluminium or Molib-tech coating.

Tech­ni­cal data:

• Q max.: 5760 m³/h
• H max.: 100 m
• Immersion depth: max. 20 m
• Tem­pe­ra­ture fluid: max. 60°C (optional up to 80°C)
• Connections: DN50 – DN600

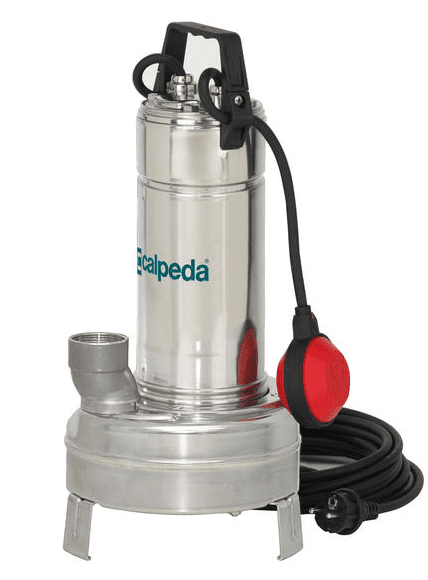

Application:

The submrsible pumps of the series GXC and GXV are used for clean and waste water with solids up to 35 mm size.
Especially the GXV can handle high a high proportion of solids and even filamentous
particles.

Characteristics:

• GXC with two-passage impeller
• GXV with vortex impeller
• Solids up to 35 mm
• Double mechanical seal in oil chamber

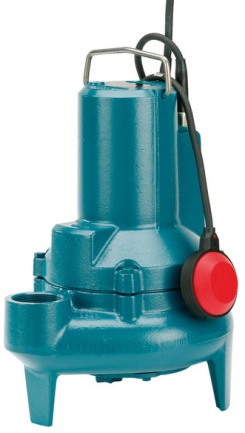

Application:

The GMC and GMV submersible pumps are used for waste water with solids up to 50 mm size.

Characteristics:

• GMC with two-passage impeller
• GMV with vortex impeller
• Solids: GMC max. 45 mm, GMV max. 50 mm
• Double mechanical seal in oil chamber

Ma­te­ria­ls:

This pump series is made of cast iron.

Tech­ni­cal Data:

• Q:  6 – 48 m³/h
• H:  1 – 17,3 m
• Immersion depth:    max. 10 m
• Tem­pe­ra­ture fluid:  max. 35°C

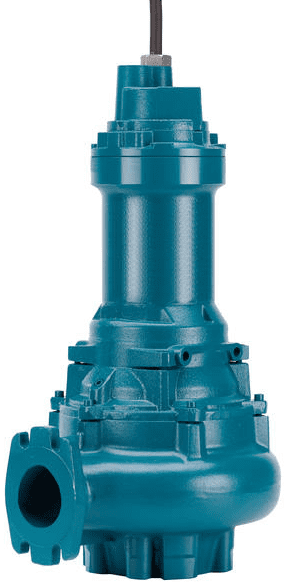

Application:

The GM is a series of submersible pumps with high efficiency hydraulics designed to
move slurry, sewage and industrial process fluids.
The range covers a wide field of use with head up to 75 m and flows up to 2300
m3/h, with a maximum solid passage up to 140 mm keeping the risk of blockage to
a minimum.
Dimensionally designed for heavy duty demand and even on critical applications.

Characteristics:

• ATEX possible
• Solids up to 140 mm
• Wide range of different versions available
